eSurvey eRTK10 mini: more Compact, Efficient, and Reliable GNSS RTK Network Receiver

The GNSS RTK receiver eRTK10 mini is a high-performance, ultra-compact network rover receiver with a built-in IMU sensor and camera, specifically designed to maximize productivity in modern surveying tasks. The device supports all global satellite constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, operates on L1, L2, L5 frequencies, and features 1408 GNSS channels, providing ultra-high RTK positioning accuracy.

The integrated IMU system enables tilt measurements of up to 60°, while the built-in camera enables AR stakeout—when the stakeout point is within a few meters, the camera activates to display the point in the real-world scene on screen, making it easier and faster to locate. It also supports visual AR stakeout from DXF files, with CAD project visualization directly in the field as augmented reality.

Package Contents:

• GNSS Receiver eRTK10 mini
• Power Supply
• USB Type-C Cable
• Warranty Card
• Carrying Soft Bag
• Carrying Case (optional)

Augmented Reality Stakeout

• During stakeout in the field, the user can see the point in the real-world environment through the receiver’s built-in camera, which helps locate it more quickly. Additionally, CAD drawings can be displayed on-site, and mass point stakeouts can be performed using the camera and field software.

Compact and Lightweight Design

• Designed for easy transportation, the eSurvey eRTK10 mini is lightweight and compact, making it highly convenient for fieldwork, even in the most challenging environments. Thanks to its lightweight (only 380 grams) and compact size, the eRTK10 mini receiver is convenient both during operation and when moving between points.

Intelligent Voice Alerts

• Stay updated with automatic voice notifications when the solution status changes. Simply press the power button to manually broadcast the current operating mode and solution status, allowing for easy status checks during work.

Convenient Web Interface

• Access the Web UI from any smartphone, tablet, or PC to check position status, configure working modes, download data, or update firmware. The intuitive interface simplifies management and enhances user control.

Max 60° Tilt Survey: A New Approach to Work

• Perform measurements with up to a 60° tilt, eliminating the need to level the pole for each measurement. This feature saves time and effort, especially during stakeouts or in difficult-to-reach areas such as building corners or slopes.

Support for PPP Galileo HAS Corrections

• PPP Galileo HAS is a service that provides global correction data via Galileo E6-B satellites. With PPP Galileo HAS corrections, the eRTK10 mini receiver can achieve 20 cm accuracy without using a base station or the Internet.

Rugged and Durable Design

• The eRTK10 mini’s body is made from magnesium alloy, providing excellent resistance to shocks and vibrations. IP67 certification guarantees operation in harsh environments, ensuring reliability in any conditions.

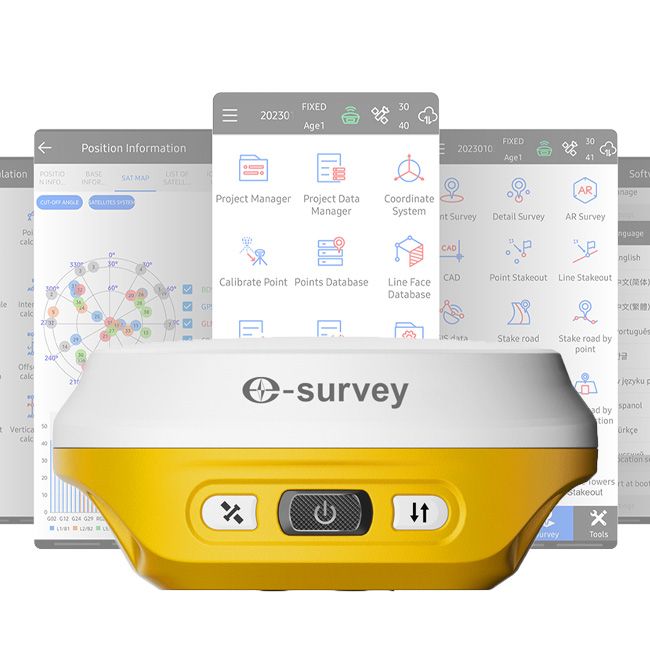

Full Compatibility with SurPad 4.2

• The eSurvey eRTK10 mini is fully compatible with the popular SurPad 4.2 geodetic software, making it an ideal tool for professional surveying work. The receiver easily integrates into existing workflows and offers powerful features like data processing, precise positioning, real-time documentation, and reporting. Compatibility with SurPad 4.2 simplifies fieldwork, enhancing productivity and accuracy.

Whether you’re managing large-scale land surveying tasks or working in urban environments, the eSurvey eRTK10 mini delivers outstanding results with minimal effort. Boost your efficiency and achieve greater accuracy with this advanced yet affordable GNSS network receiver.
